Through balancing the nut to perform precise adjustment
The torque limiter is equipped with a scale meter, which is convenient for torque adjustment
Re-reset at equal intervals or 360°
No maintenance

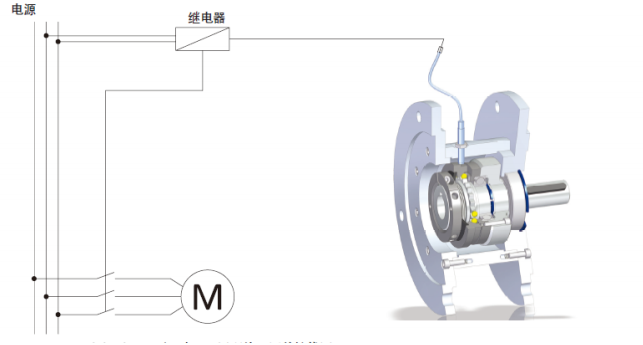

Can be equipped with fine-tuning mechanical switch/proximity switch to stop the motor drive, the assembly drive assembly is directly supported by roller bearings
on request:
Equipped with a complete set of transmission components assembly (sprockets, pulleys, gears...)
Can be connected through 8 holes, the component can be circulated with other products on the market
Equipped with connecting flange to connect with the most common intermittent drive unit
Mesh can be customized to stage 30 °, 45 °, 60 °, 90 °,..
The Backlash-free torque limiter has high technology and high accuracy. A backlash-free motion transmission is provided through a highly sensitive reaction action, which can be released instantly after reaching the set release torque.

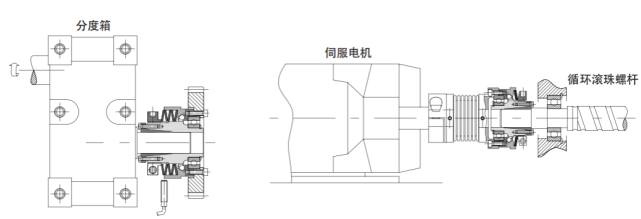

main application
Bottle blowing machines, filling machines
labeling machines and other packaging machinery
CNC tool machinery, indexing table
Director, powertrain
Servo motor, guide rail
advantages and features
Protect the product in case of overload
Protect the indexing device when the transmission is overloaded
In the event of a collision, protect the mechanical operating unit
In case of collision or limit stop, protect the slide rail or servo motor
